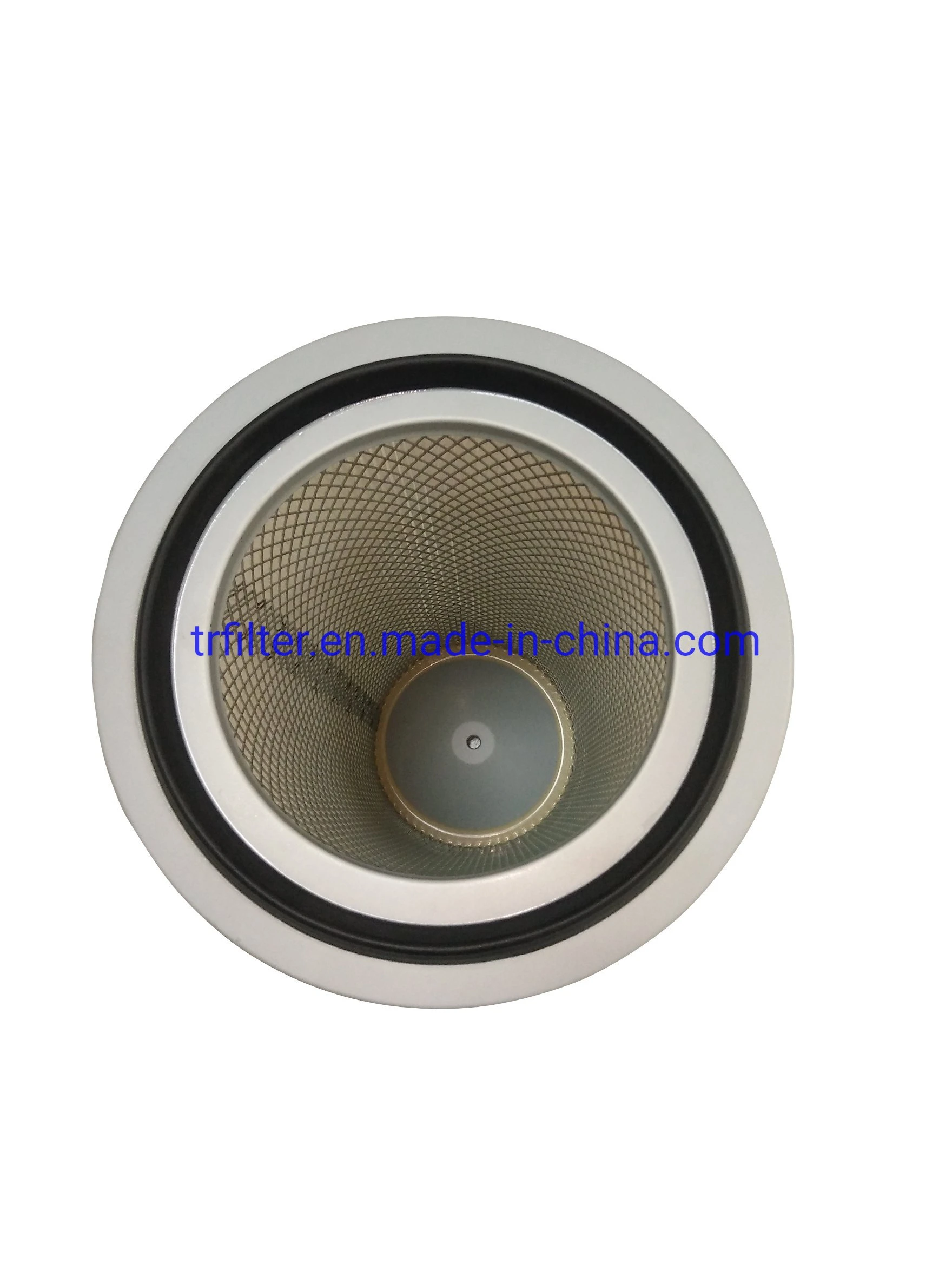

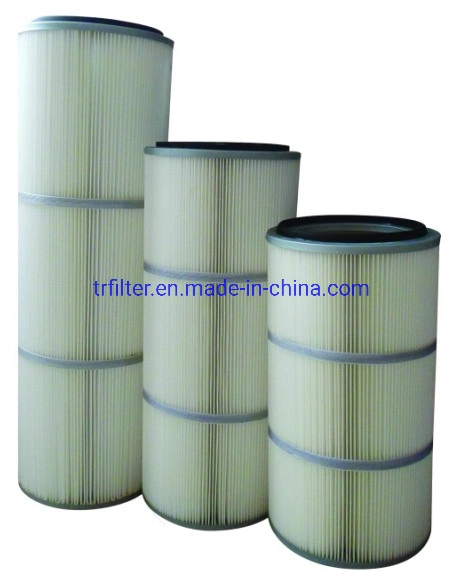

Industrial dust filter cartridge PTFE membrane anti-static
Features :
Galvanized metal top and bottom structure
Perforated galvanized steel or stainless steel net
100% filament spinning clay polyester filter media
Continuous operating temperature:130Degree
Tube sheet hole thickness: about 5mm
Elasticity rose ring
Optional after-treatment:PTFE,anti-static, waterproof and anti-oil treatment.
Specification :
We are factory, we can make products as per your needs.
If you have any question, please feel free to contact me.
Contact information :
Name : Linda
Cellphone No.:0086-13306175601
Features :
Galvanized metal top and bottom structure
Perforated galvanized steel or stainless steel net
100% filament spinning clay polyester filter media
Continuous operating temperature:130Degree
Tube sheet hole thickness: about 5mm
Elasticity rose ring
Optional after-treatment:PTFE,anti-static, waterproof and anti-oil treatment.
Specification :
| MTR Model | Cover Material | Tube Sheet H.D (mm) | Top Cover O.D (mm) | Bottom Cover O.D (mm) | Filtration Surface/1m | Filtration Surface/2m |
| TR/LM 127 | Galvanized metal | Φ127 | φ146 | φ114 | 1.1m² | 2.3m² |
| TR/LM 133 | Galvanized metal | Φ133 | φ152 | φ121 | 1.5m² | 3.0m² |
| TR/LM159 | Galvanized metal | Φ159 | φ178 | φ144 | 2.1m² | 4.1m² |
| TR/LM 162 | Galvanized metal | Φ162 | φ178 | φ146 | 2.3m² | 4.6m² |
We are factory, we can make products as per your needs.
If you have any question, please feel free to contact me.
Contact information :
Name : Linda
Cellphone No.:0086-13306175601
